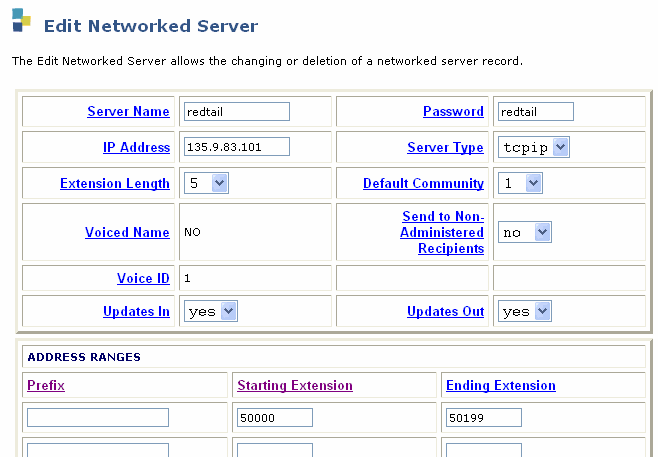

| Server Name
|
1 to 8 alphanumeric characters
A dash ('-')
An underbar ('_').
If this is a remote server name, you can
enter 1 to 10 alphanumeric characters.
|
Use this field to enter the unique name of the server you
want to add or modify. The server name cannot contain a period, or
begin with a digit. Use of the server name "fax" is reserved and not
permitted.
|
| IP Address
|
Display-only
|
The IP address of the local Communication Manager server.
|
| Password
|
From 5 to 10 alphanumeric characters; can include dashes
or underscores
|
Enter the remote password that machines must use to establish
networking connections to this local Communication Manager server.
|
| Server Type
|
TCPIP
|
Use this drop-down list to select the server type
|
| Extension Length
|
As defined on the Switch Link Admin page
|
Use this drop-down list to select the extension length for
all subscribers on this networked server. This number must match the
number of digits in the extension numbers defined in the fields under
Address Ranges.
|
| Default Community
|
The default for this field is 1.
|
Use this drop-down list to select the default community
number for this networked server. The community determines the subscriber
sending restrictions. The default community is used for messages received
from this networked server without the originator's community number.
|
| Voice Name
|
|
This field indicates whether a voiced name for this server
is recorded.
|
| Send to Non-Administered Recipients
|
If you select Yes, the Messaging system will attempt
to deliver messages to non-administered remote recipients.
If you select No, the Messaging system will not attempt
to deliver messages to non-administered remote recipients.
|
Use this drop-down list to enable or disable message delivery
to non-administered remote recipients.
|
| Voiced ID
|
Internally assigned identifier for the voiced machine name.
|
The administrator uses this value when recording the name
for the machine.
|
| Updates:
In?
|
y
= yes
n= no
|
If you enter y, this local Communication Manager
server accepts updated subscriber database information from any remote
Communication Manager server (the Updates In field must also be set
to y on the remote Machine Profile screen setup on the local
Communication Manager server for each remote Communication Manager
server).
If you enter n, the local Communication Manager
server does not accept updates from any remote Communication Manager
server, regardless of the entry on the remote Machine Profile screen.
Set this field to y only after testing the network end to end
during initial administration.
|
| Updates:
Out?
|
yesno
|
If you enter y, updates to subscriber database information
for local subscribers are sent to a remote Communication Manager server
(the Updates Out field must also be set to y on the remote Machine
Profile screen set up on the local Communication Manager server for
each remote Communication Manager server).
If you enter n, updates are not sent to any remote Communication Manager server,
regardless of the entry for this field on the remote Machine Profile
screen. Set this field to yes only after testing the network
end to end during initial administration.
|
| Prefix
|
The prefix can be 0 to 21 alphanumeric characters in length.
Total length cannot exceed 24 characters.
|
Use this field to enter the prefix digits for the ranges
of telephone numbers for subscribers on this server. The prefix can
be used to distinguish between server that have overlapping extension
number ranges.
|
| Starting Extension
|
The total length of the prefix and extension number cannot
exceed 24 characters, and the ranges cannot overlap with another range
if multiple address ranges are specified for this server.
|
Use this field to enter the starting extension numbers for
the ranges of telephone numbers used by subscribers on this server.
The number of digits in a extension number must match the entry in
the Extension Length field for this server.
|
| Ending Extension
|
The total length of the prefix and extension number cannot
exceed 24 characters, and the ranges cannot overlap with another range
if multiple address ranges are specified for this server.
|
The ending extension numbers for the ranges of telephone
numbers used by subscribers on this server. The number of digits in
an extension number must match the entry in the Extension Length field
for this server.
|
| Save
|
|
Select this button to add the new network server to the
system or update the settings of an existing server.
|
| Delete
|
|
Select this button to remove an existing server from the
system.
|
| Back
|
|
Select this button to return to the previous page.
|
