Logs -> Administrator

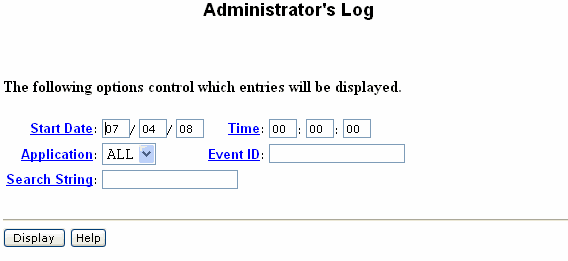

Table: Field Definitions: Administrator's Log page
| Field Name | Valid Input | Description/Procedure |
|---|---|---|
| Start Date: | A calendar date in the format mm/dd/yy | The beginning date for the log report. If you leave this field
blank, all qualifying alarms are displayed.
The default value is the date that this page was last used. (This pagelastused date is preserved across restarts.) |
| Time: | A 24-hour clock time in the format hh:mm | The beginning hour and minute that the report begins. The Start
Date: field must have valid entries before you can use this field.
If the Time: field is blank, all alarms for
the specified start date are displayed.
The default value is the time that this page was last used. (This pagelastused time is preserved across restarts.) |
| Application: | Blank
AS, EL, MT, SM, VM, or VP |
The two-character application code for the administration log entry:
(blank) All applications AS= Access Security Gateway EL= Enhanced List Application MT = Maintenance SM= Station Manager SW= Switch Integration VM = Messaging VP = Voice Platform |
| Event ID: | From 1 to 14
alphanumeric characters |
The event ID for a specific event. A blank field displays all event types. See Alarms and Events for a list of valid administration event IDs. |
| Search String: | From 1 to 78 characters | A text string that you want the system to search for in the administrator's log entries. The system searches the Message field of the administrator's log for matching text. |
