Logs -> Administrator

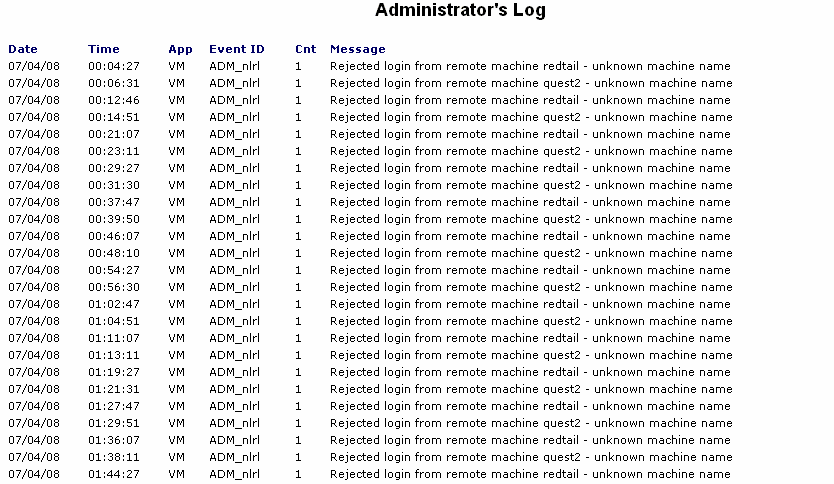

Table: Field Definitions: Administrator's Log Screen; Report Results
| Field Name | Description/Procedure |
|---|---|
| Date | The dates that the alarms were logged. |
| Time | The times on the given dates that the administration alarms were logged. |
| App | The two-character application code for the administrator's
log entry:
(blank) All applications AS= Access Security Gateway MT = Maintenance SM= Station Manager SW= Switch Integration VM = Messaging VP = Voice Platform |
| Event ID: | The code for the administration event type. See Alarms and Events for a list of event types. |
| Cnt | The number of times that the associated message was sent to the administrator's log within 1 minute. |
| Message | A textual description of the administration event. Two lines are used for each event. |
